Module Overview

In this article:

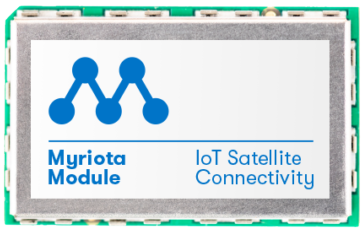

    Build scalable IoT devices that capture data, anywhere. Myriota Module Cropped.png
    The foundation for globally connected IoT products.
    The Myriota Module is energy-efficient, and securely communicates directly with Myriota’s constellation of low earth orbit nanosatellites.
    The Module is a powerful edge computing device and can interface with a range of sensors and devices. It can be programmed to log, pre-process, and securely transmit data to the Myriota Network.
    The Module is designed to make it easy to add long battery life, global IoT connectivity to your products.
    Features
    Model Numbers Service 1 - M1-24
    Service 2 - M2-24
    Price Enquire for pricing
    Communications
    • Myriota secure and private low-power satellite IoT connectivity
    • AES-CBC-256 encryption using unique per-Module keys
    Radio Frequency M1-2x Variant:
    • VHF TX  160.975 - 161.475
    • UHF RX  400.15 - 401
    M2-2x Variant:
    • UHF TX  399.9 - 400.05
    • UHF RX  400.15 - 401
    Form Factor 58-pin QFN module
    Operating Temperature -30°C to 70°C / -22°F to 158°F
    Supply Voltage 3.0V - 3.6V
    Integrated Microcontroller
    • ARM Cortex-M4 CPU platform
    • Up to 48 MHz 34 kB Flash and 4kB RAM accessible for user application
    • Preprogrammed with bootloader
    Communication Interfaces
    • 2× UART
    • 1× Low Energy UART with wakeup capability
    • 1× I²C Master Interface
    • 1x SPI Master Interface
    • 1x Pulse Counter
    • 2x 12-bit ADC
    • 1x SWD
    • 9x GPIO (2x with wakeup capability)
    Buy
    Enquire to buy
    Downloads
    Module Datasheet
    Module Integration Guide
    More Information
    Find more documentation in the Datasheets & Downloads page
