FlexSense Overview

In this article:

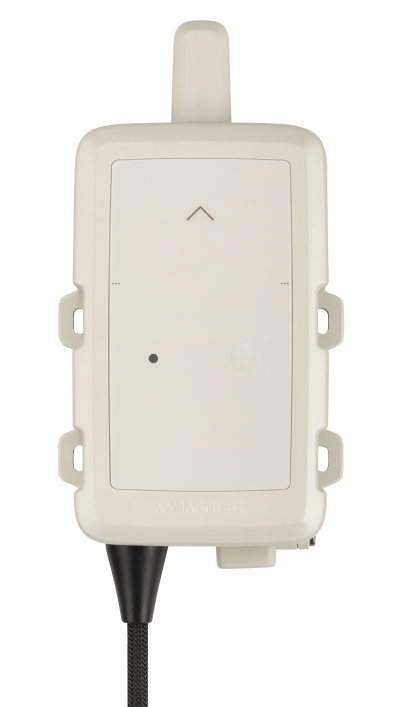

    Experience the most flexible and resilient IoT development solution available. MYRIOTA-18_FS_compressed.png
    Myriota FlexSense is the most flexible and highly featured IoT edge enabler available. Compatible with a huge range of sensor types and designed for simple “just works” real world deployment testing, it provides the ultimate springboard for developing your IoT customer solution.
    The FlexSense offers over five years in-field battery life and easy, tool-free field access to the battery compartment, or optional locking mechanism for security.
    Rugged IP67, UV resistant enclosure with internally mounted antenna, and a flexible range of sensor interfaces.
    On-bench or infield install and configuration updates via BLE & USB-C, or take advantage of Myriota's over-the-air device control network feature (SDK 2+) for seamless device management.
    Features
    Model Number FS-S-2A
    Communications
    • Myriota secure and private low-power satellite IoT connectivity
    • AES-CBC-256 encryption using unique per-Module keys
    Radio Frequency
    • UHF TX  399.9 - 400.05
    • UHF RX  400.15 - 401
    Dimensions 198mm H (includes antenna and
    cable relief) x 95mm W x 47mm L
    Enclosure Rugged IP67-rated, UV resistant enclosure with internally mounted antennas
    Operating Temperature -30°C to +70°C / -22°F to 158°F
    Regulatory Approvals
    • ACMA/RCM
    • FCC
    • Industry Canada
    • ANATEL
    • ENACOM (pending)
    • IFETEL (pending)
    • SUBTEL (pending)
    • MTC (pending)
    • CE Red (pending)
    Environmental
    • IP-67
    Power Supply 2x or 4x Lithium AA Batteries (3 - 3.6V)
    Application Programming
    • Pre-programming for asset location and temperature reporting
    • Simple Application Programming Interface (API) for job scheduling, sensor input/output, diagnostics, and access to Myriota’s communication stack
    • Custom applications can be developed by the Myriota Design Services team, or your in-house development team, using the Myriota Software Development Kit (SDK) and Device API
    Field update
    • Bluetooth Low Energy (BLE)
    • USB-C
    On-board Myriota Module MCU
    • Low power 32-bit microcontroller,
    • ARM Cortex-M4, 48MHz
    • 256kB flash, 32kB RAM
    Sensor Integrations Input
    • 1x Analogue (4-20mA, 0-5V, or 0-10V)
    Bidirectional
    • 2x Digital I/O (Digital IN, Digital OUT, or Pulse Counter)
    • 1x Serial (RS-232 or RS-485)
    • 1x I2C
    • 1x Expansion header for connection of daughter boards and new interfaces
    Output
    • 1x Power (5-24V configurable power output for external sensors)
    Expansion Header Internal expansion interface to support other I/O options
    Cable /
    Connection    		 Comes standard with a connected flying lead, customisation options and connections available
    Location Services
         		Global Navigation Satellite System (GNSS) for geolocation and tracking
    White Label The FlexSense is available for white labelling. Contact our Sales team to discuss your needs
    Buy
    Available to order now. Contact our Sales team for volume pricing or to get more information on this exciting new product.
